Solis 8KW IP66 Single Phase Hybrid Solar Inverter for Sale

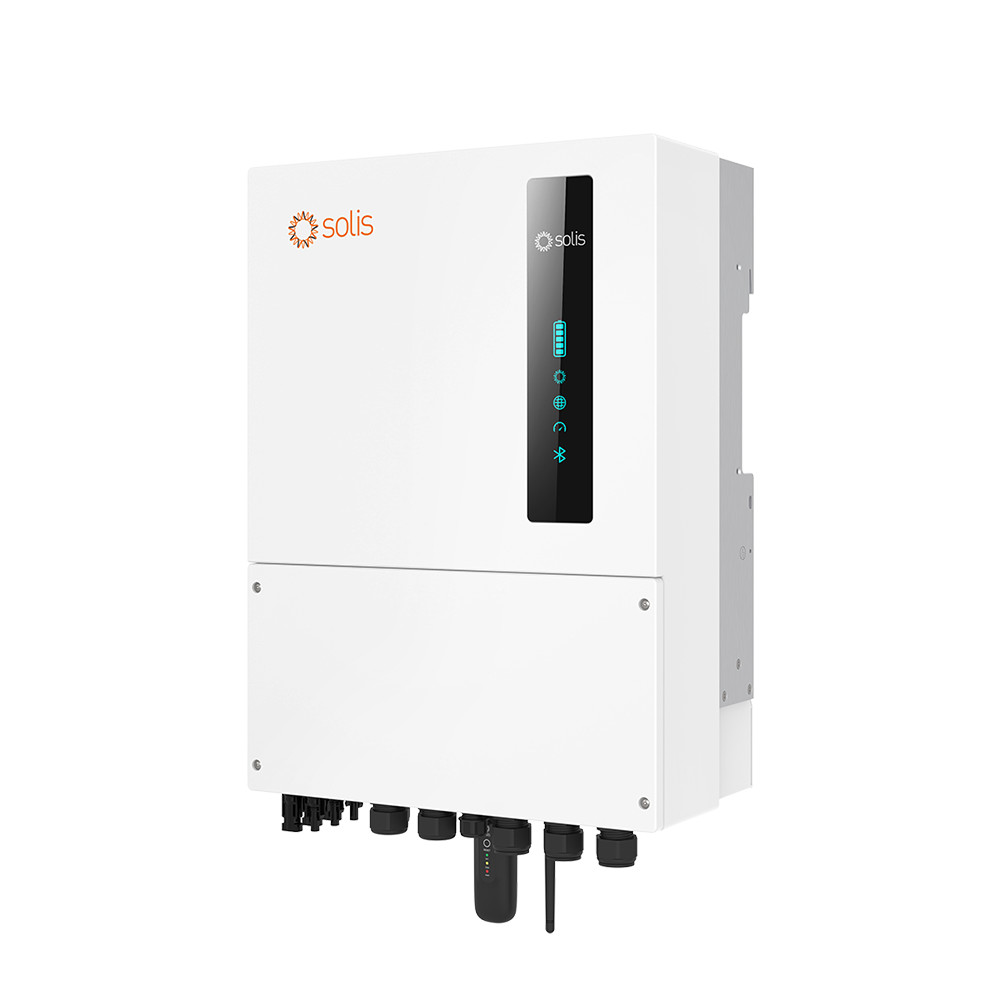

Solis 8KW Single Phase Hybrid Inverter

Rs: 390,000 Survey score 5.0 In Stock

Overview & Features

Max. PV array size: 16 KW
Max. usable PV input power: 12.8 KW
Max. input voltage: 600V
Rated voltage: 330V
Start-up voltage: 90V
MPPT voltage range: 90-520V
Battery type: Li-ion / Lead-acid
battery voltage range: 40-60V
Max. charge / discharge power: 8KW
Max. charge / discharge current: 190A
Communication: CAN/RS485
Rated output power: 8KW
max.apparent output power: 8.8KVA
Max. output current: 40A
Max. input current: 50A
Frequency range: 45-55 Hz / 55-65Hz
Rated output power: 8KW
Rated output current: 36.4 A / 34.8 A
Max. output current: 40 A
Max. AC Passthrough current: 50 A
Max. efficiency: >96.9%
EU efficiency: >96.5%
DC reverse-Polarity Protection: Yes
Ground fault monitoring: Yes
Ingress protection: IP66
Max. operation altitude: 4000 m
Display: LED + APP

Technical Overview:

Looking for a powerful and efficient solar inverter?

The Solis 8KW Hybrid Inverter delivers reliable performance with a max PV array size of 16KW and MPPT voltage range of 90-520V, ensuring optimal energy conversion. Ideal for both residential and commercial applications, this IP66-rated inverter is built for durability in harsh weather conditions.

With a max charge/discharge power of 8KW and 190A current capacity, it seamlessly supports Li-ion and Lead-acid batteries for efficient energy storage. Its smart monitoring system, featuring Wi-Fi, CAN, and RS485 communication, keeps you in control.

Check out the Solis 8KW inverter price in Pakistan and download the user manual PDF and datasheet to explore its advanced features.

Power your future with efficiency! ??

Model	8K
Input DC (PV side)
Recommended max.PV array size	16 KW
Max. usable PV input power	12.8 KW
Max. input voltage	600V
Rated voltage	330V
Start-up voltage	90V
MPPT voltage range	90-520V
Max. short circuit current	36A / 30A
MPPT number/max.input strings number	2/3
Battery
Battery type	Li-ion / Lead-acid
battery voltage range	40-60V
Max. charge / discharge power	8KW
Max. charge / discharge current	190A
Communication	CAN/RS485
Output AC (Grid side)
Rated output power	8KW
max.apparent output power	8.8KVA
Operating phase	1/N/PE
Rated grid voltage	220 V / 230 V
Rated grid frequency	50Hz / 60Hz
Rated grid output output current	36.4 A / 34.8 A
Max.output current	40A
Power factor	>0.99(0.8 leading - 0.8 lagging)
THDi	<2%
Input AC (Grid side)
Input voltage range	187-253V
Max.input current	50A
Frequency range	45-55 Hz / 55-65Hz
Output AC (Back-up)
Rated output power	8KW
Max.appartment output power	2 time of rated power , 10s
Back-up switch time	<4 ms
Rated output voltage	1/N/PE,220V / 230 V
Rated frequency	50 Hz / 60 Hz
Rated output current	36.4 A / 34.8 A
Max. output current	40 A
Max. AC Passthrough current	50 A
THDv (@linear Load)	<2%
Efficiency
Max.efficiency	>96.9%
EU efficiency	>96.5%
Protection
DC reverse-Polarity Protection	Yes
Ground fault monitoring	Yes
Integrated AFCI (DC arc-fault circuit protection)	Yes
Protection class/over voltage category	I/II (PV and BAT), III(MAINS and BACKUP and GEN)
General Data
Dimensions(WHD)	406560215mm
Weight	26 Kg
Topology	High frequency isolation (for battery)
Operating ambient temperature range	-40 ~ +60C
Ingress protection	IP66
Cooling concept	Intelligent redundant fan-cooling
Max. operation altitude	4000 m
Grid connection standard	NRS 097-2-1,IEC62116, IEC 61727,IEC 60068,IEC 61683, EN 50530,MED,PEA
Safety/EMC standard	IEC/EN62109-1/-2,EN 61000-6-2/-3
Features
DC connection	MCA Plug (PV port) / Terminal Block (BAT port)
AC connection	Terminal Block
Display	LED + APP
Communication	RS485,CAN,Optional:Wi-Fi,GPRS,LAN
