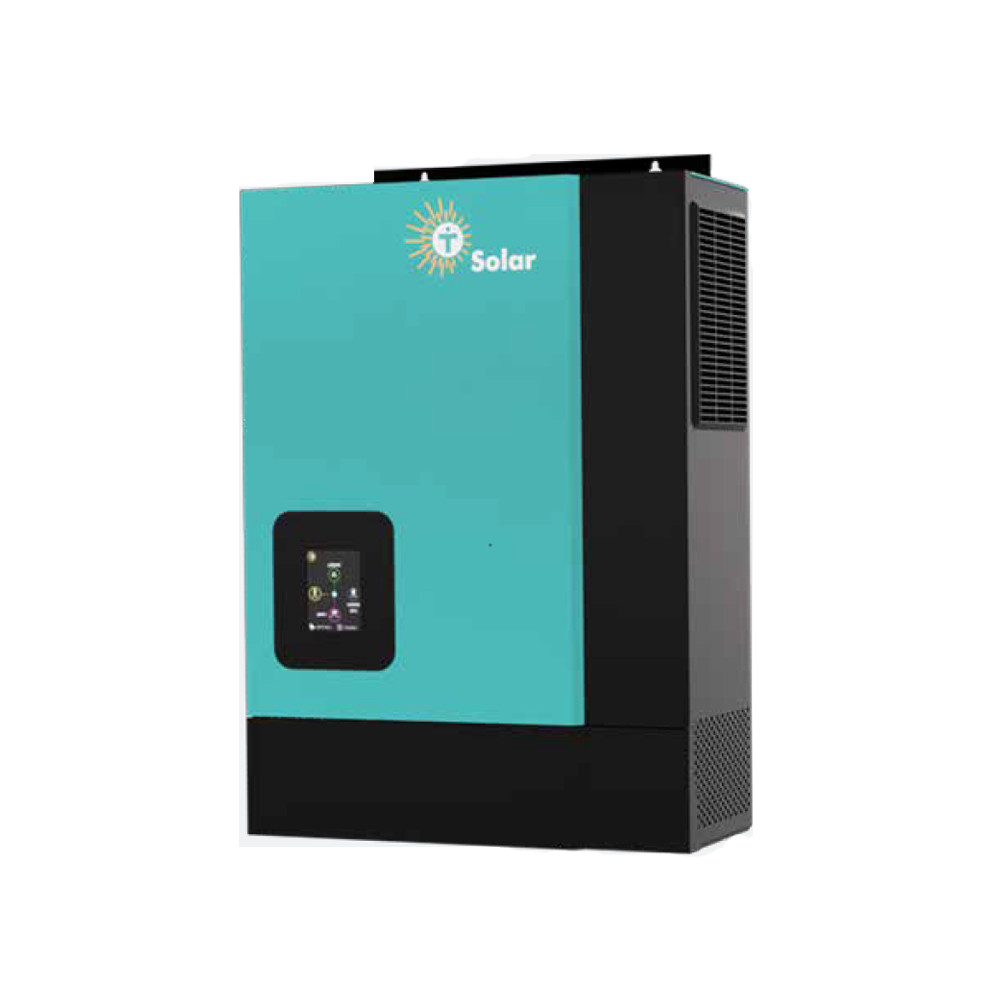

Tesla Infinity HLE 6KW IP21 On Grid & Hybrid Solar Inverter

Technical Overview:

The Tesla Infinity HLE inverter is a reliable hybrid power solution, engineered for efficient solar energy conversion. Designed with a 6KW rated output power and 48V nominal DC voltage, the Tesla Infinity 6KW HLE model inverter is ideal for medium-sized residential and commercial energy systems. With a maximum PV input of 6500W and support for up to 120A charging current, it delivers rapid solar charging and robust performance.

This model supports battery-less operation, offering flexibility in energy setup. The dual load priority AC output ports (1 High + 1 Low) make power distribution efficient and manageable. Featuring a wide MPP voltage range of 120–430VDC, the inverter optimizes solar power harvesting. It delivers pure sine wave output at 220–240VAC, ensuring smooth operation for sensitive devices.

If you're looking for a dependable Tesla 6KW inverter hybrid or a competitively priced Tesla solar inverter 6KW 48V for sale, this unit meets modern energy demands with precision and stability.

Experience advanced off-grid and on-grid capability with this powerful Tesla inverter built for today's smart energy users.

MODEL	Infinity 6kW 1 ph HLE	Infinity 3kW 1 ph HLE
PHASE	1-Phase in / 1-Phase out	1-phase in / 1-Phase out
Maximum PV Input Power	6500 W	4500 W
Rated Output Power	6000W	3000 W
Maximum Charging Power	6000W	2880 W
Mode	On-Grid / Off-Grid
Battery Less Operation	Yes
Touch Screen LCD HMI	2.5*
Load Priority AC Output Ports	1 Hi + 1 Lo
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 500 VDC	360 VDC / 450 VDC
Start-up Voltage / Initial Feeding Voltage	130 VDC / 150 VDC	80 VDC
MPP Voltage Range	120 VDC ~ 430 VDC	80 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 x 27A
GRID OUTPUT (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184-264.5 VAC or 195.5 - 253 VAC (Selection)
Nominal Output Current	26 A	13 A
Power Factor	>0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120 - 140 VAC / 180 VAC
Acceptable-Input Voltage Range	90 - 280 VAC or 170-280 VAC
Frequency Range	50 Hz/60Hz (Auto Sensing)
Maximum AC Input Current	45 A
PV INPUT (DC)
Maximum DC Voltage	500 VDC
MPP Voltage Range	120 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 x 27A	1 x 27A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage	220-230-240 VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	93%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage	360 VDC / 500 VDC	360 VDC / 450 VDC
Start-up Voltage / Initial Feeding Voltage	130 VDC / 150 VDC	80 VDC
MPP Voltage Range	120 VDC ~ 430 VDC	80 VDC ~ 430 VDC
Number of MPP Trackers / Maximum Input Current	1 x 27A	1 x 18 A
GRID OUTPUT (AC)
High & Low Priority Output Ports	Yes
Low Port Derated Output (Batteryless Mode)	Yes
Nominal Output Voltage	220-230-240 VAC
Output Voltage Range	184-264.5VAC or 195.5 - 253 VAC (Selection)
Nominal Output Current	26 A	13 A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage	120-140 VAC ~ 180 VAC
Acceptable-Input Voltage Range	90-280 VAC or 170-280 VAC
Maximum AC Input Current	45 A
BATTERY MODE OUTPUT (AC)
ESS
Nominal Output Voltage	220-230-240 VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	95%
BATTERY & CHARGER
Nominal DC Voltage	48 V	24 V / 48V
Maximum Solar Charging Current	120 A	60 A
Maximum AC Charging Current	120 A	60 A
Maximum Charging Current	120 A	60 A
GENERAL
PHYSICAL
Dimension D x W x H (mm)	120 x 295 x 468
Net Weight (kgs)	12	11
INTERFACE
Parallel Function	Yes, 9 Units
Communication Port	USB or RS -422/Dry Contact, WiFi
ENVIRONMENT
Humidity	0~90% RH (No Condensing)
Operating Temperature	-10C to 50C
