Fox Inverter T12-G3 12KW On Grid Three Phase Inverter Price, User Manual & Specs Download

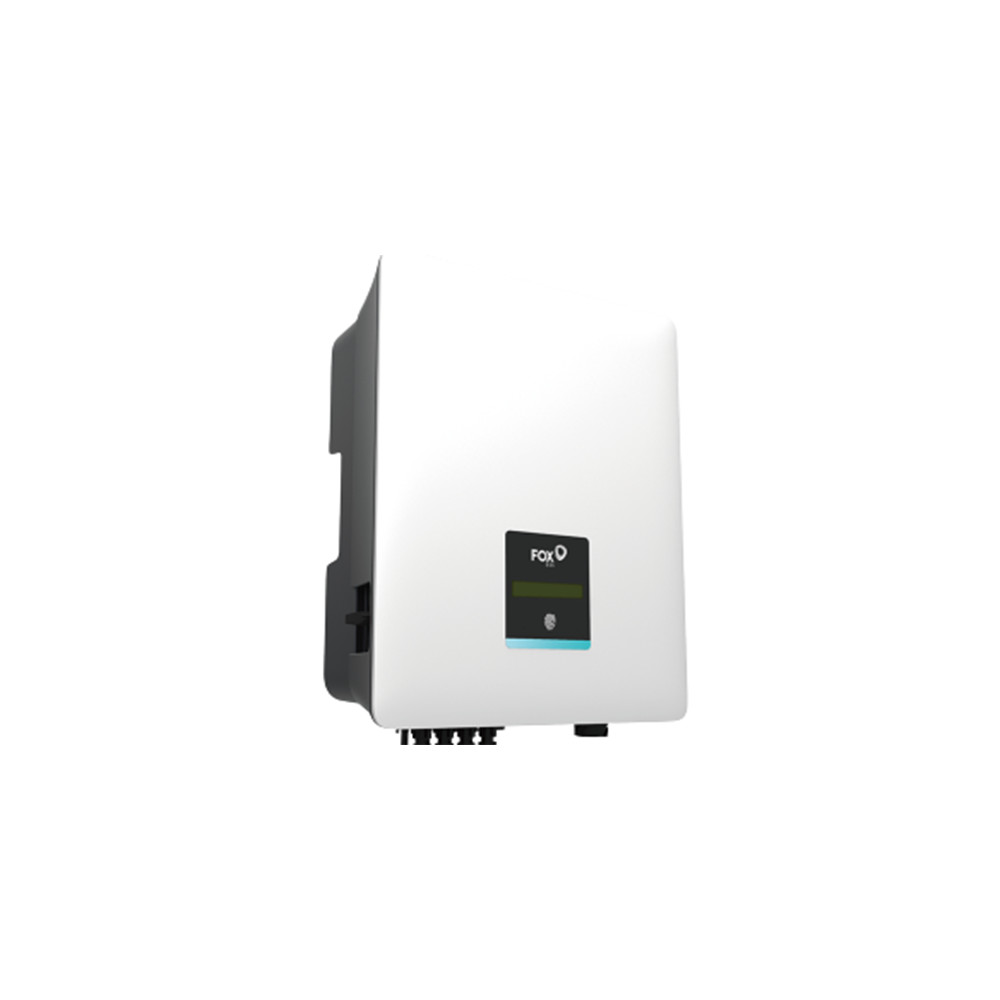

Fox T12-G3 Inverter On Grid IP65 Three Phase

Rs: 345,000 Survey score 4.0 In Stock

Overview & Features

Max. Input Power[W]: 18000
Max. Input Voltage[V]: 1100
Start-up Input Voltage[V]: 140
Rated Input Voltage[V]: 600
MPPT Operating Voltage Range[V]: 140-1000
Max. Input Current[A]: 14
Max. Short circuit Current[A]: 18.2
No. of Independent MPP Trackers: 2
Rated Output Power[W]: 12000
Max. Output Apparent Power[VA]: 13200
Rated Output Current[A]: 17.4
Max. Output Current[A]: 19.1
EFFICIENCY: 99.80%
MPPT Efficiency: 97.80%
Euro Efficiency: 98.60%
Surge Protection: DC/AC: Type II
DC Switch: Yes
AFCI: Yes
Weight: 17
Max. Operating Altitude: 3000
Operating Temperature Range: -25 ~ 60
Humidity: 0 ~ 100%
Protection Degree: IP65

Technical Overview:

The Fox Inverter 12KW T12-G3 is a cutting edge solution for solar power systems, offering high efficiency and advanced protection features.

With a maximum input power of 18,000W and a rated output of 12,000W, it ensures optimal energy conversion.

Its MPPT efficiency of 97.80% and Euro efficiency of 98.60% make it a top choice for residential and commercial solar installations.

Built for durability, this IP65-rated Fox inverter can endure tough environmental conditions. It comes equipped with DC/AC Type II surge protection, an integrated DC switch, and AFCI technology, ensuring maximum safety.

With a wide MPPT voltage range of 140-1000V, it optimizes performance even under fluctuating sunlight conditions.

For pricing details, check the Fox inverter 12KW price in Pakistan and access the Fox inverter T12-G3 user manual or T12-G3 model datasheet for complete specifications.

MODEL	T3-G3	T4-G3	T5-G3	T6-G3	T8-G3	T10-G3	T12-G3	T15-G3	T17-G3	T20-G3	T23-G3	T25-G3
INPUT (PV)
Max. Input Power[W]	4500	6000	7500	9000	12000	15000	18000	22500	25500	30000	34500	37500
Max. Input Voltage[V]	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100
Start-up Input Voltage[V]	140	140	140	140	140	140	140	140	140	140	140	140
Rated Input Voltage[V]	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Operating Voltage Range[V]	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000	140-1000
Max. Input Current[A]	14	14	14	14	14	14	14	14	14	14	14	14
Max. Short circuit Current[A]	18.2	18.2	18.2	18.2	18.2	18.2	18.2	18.2	18.2	18.2	18.2	18.2
No. of Independent MPP Trackers	2	2	2	2	2	2	2	2	2	2	2	2
No. of String per MPP Tracker	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1	1+1
OUTPUT (AC)
Rated Output Power[W]	3000	4000	5000	6000	8000	10000	12000	15000	17000	20000	23000	25000
Max. Output Apparent Power[VA]	3300	4400	5500	6600	8800	11000	13200	16500	18700	22000	25300	27500
Rated Grid Voltage[V]						3/N/PE,220,230,380/400,240/415
Rated Grid Frequency[Hz]						50/60
Rated Output Current[A]	4.3	5.8	7.2	8.7	11.6	14.5	17.4	21.7	24.6	29	33.3	36.2
Max. Output Current[A]	4.8	6.4	8	9.6	12.8	15.9	19.1	23.9	27.1	31.9	36.7	39.9
Power Factor						1(Adjustable from 0.8 leading to 0.8lagging)
Total Harmonic Distortion[THDi}						<3%
EFFICIENCY						99.80%
MPPT Efficiency						97.80%
Euro Efficiency						98.60%
Max. Efficiency
PROTECTION
Insulation Monitoring						Yes
Residual Current Monitoring						Yes
PV String Current Monitoring			Yes						Optional
DC Reverse Polarity Protection						Yes
Anti-islanding Protection						Yes
AC Short - circuit Protection						Yes
AC Overcurrent Protection						Yes
AC Overvoltage Protection						Yes
Surge Protection						DC/AC:Type II
DC Switch						Yes
AFCI						Yes
GENERAL DATA
Demensions (WxHxD)[mm]						370480183.5
Weight	17	17	17	17	17	17	17	20	20	20	21	21
Cooling Method		Natural Convection						Fan
Topology					Transformerless
Noise Emission(typical)	<30	<30	<30	<30	<30	<30	<30	<55	<55	<55	<55	<55
Max. Operating Altitude						3000
Operating Temperature Range						-25 ~ 60
Humidity						0 ~ 100% (No Condensation)
Protection Degree						IP65
Internal Consumption at Night						<3
Monitoring Module						WiFi / 4G (Optional)
Communication						RS485,Meter, DRM,Estop
Display						LCD,Touch Key,APP,Website
STANDARD COMPLIANCE
Safety					EN62109-1/2,BIS IS 16169, BIS IS 16221-1/2
EMC					EN 61000-6-1/2/3/4
Grid Regulation			AS/NZS-4777.2,C10/11, EN50549-1,PN EN-50549-1,VDC-AR-N4105, RD 1699, CEI 0-21,NB/T 32004, VDE V0126-1-1,UTE C15-712-1
