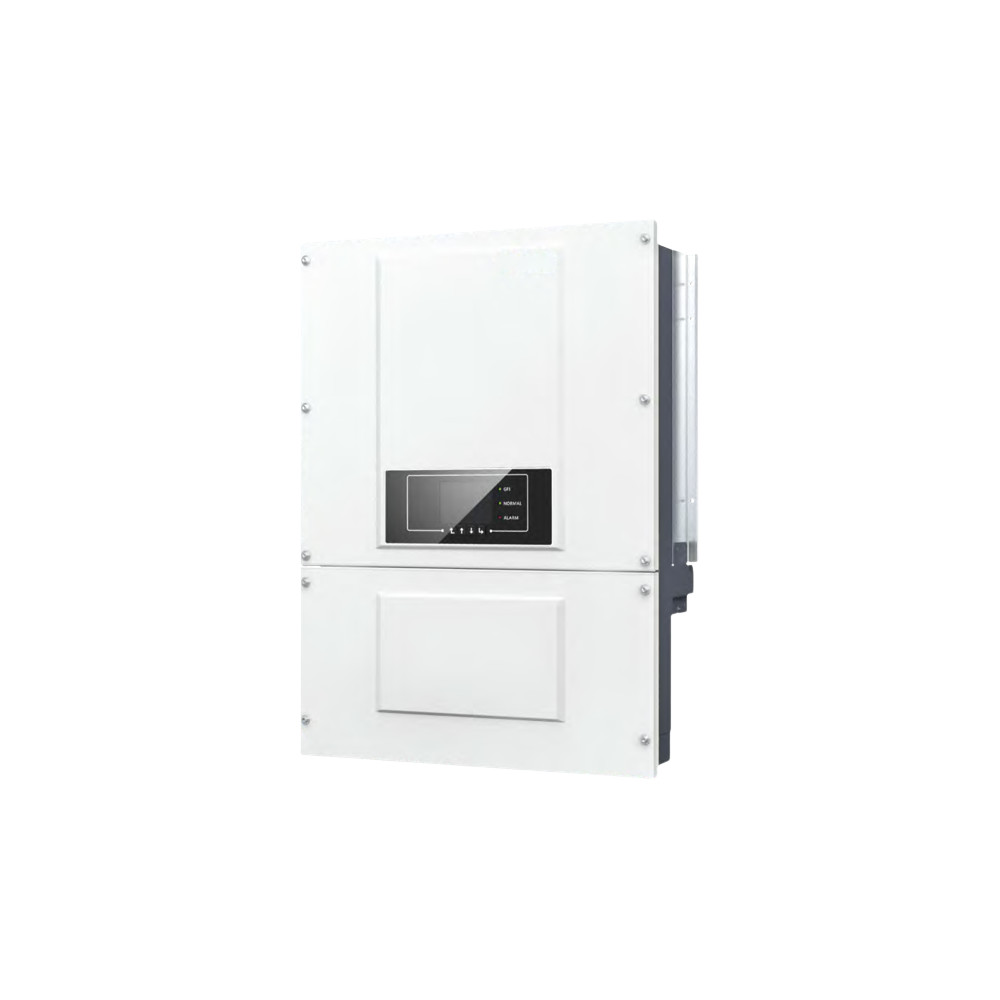

Sofar 40KW [40000TL] IP65 On Grid Three Phase Solar Inverter Price

Sofar 40KW IP65 On Grid Inverter

Rs: 395,000 Survey score 3.0 In Stock

Overview & Features

Recommended Max. PV input power: 53200Wp
Max DC power for single MPPT: 20400W
Rated input voltage: 700V
Full power MPPT voltage range: 560V-800V
Max. input MPPT current: 35A/35A
Rated power: 40000W
Max. AC power: 40000W
Max. Output Current: 48A
Max efficiency: 98.70%
European weighted efficiency: 98.40%
Input/output SPD (II): Optional
Operation data storage: 25Years
Topology: Transformer-less
Degree of protection: IP65
Cooling: Fan
Dimension: 777*564*298mm
Display: LCD display
Warranty: 5 years/7 years / 10 years

Technical Overview:

The Sofar 40KW on-grid inverter is a high-performance solar solution, ideal for commercial and industrial applications. With a recommended maximum PV input power of 53,200Wp, it efficiently converts solar energy into usable electricity.

Featuring MPPT voltage tracking between 560V-800V, it optimizes energy harvesting even under variable conditions. The inverter delivers a rated output of 40,000W with a maximum efficiency of 98.70%, ensuring minimal energy loss. Its IP65-rated enclosure provides excellent durability for outdoor and indoor installations.

The Sofar 40000TL inverter comes with optional SPD protection, a built-in power management unit, and data storage for 25 years.

If you’re looking to buy the Sofar 40KVA inverter, check out the latest Sofar 40KVA inverter price and specifications to find the best deal.

Datasheet	SOFAR 30000TL	SOFAR 33000TL	SOFAR 36000TL	SOFAR 40000TL
Input (DC)
Recommended Max. PV input power	39900Wp	43890Wp	47880Wp	53200Wp
Max DC power for single MPPT	15360W	17000W	20400	20400W
Number of MPP trackers			2
Number of DC inputs			4 for each MPPT
Max. input voltage			10000V
Start-up voltage			350V
Rated input voltage	600V	600V	600V	700V
MPPT operating voltage range			250V-960V
Full power MPPT voltage range	480V-800V	480-800V	500V-800V	560V-800V
Max. input MPPT current	332A/32A	35A/35A	38A/38A	35A/35A
Max. input current per string			12A
Maximum DC input short circuit current per MPPT	40A	40A	42A	40A
Output (AC)
Rated power	30000W	33000W	36000W	40000W
Max. AC power	30000VA	33000W	36000W	40000W
Max. Output Current	43A	48A	54A	48A
Nominal Grid voltage	3/N/PE, 220/380Vac, 230/400vac, 240/415Vac	3/N/PE or 3/PE, 277/480Vac
Grid Voltage range	310Vac-480Vac (According to local standard)	422Vac-528Vac (According to local standard)
Nominal frequency		50/60Hz
Grid Frequency Range		45Hz-55Hz/54Hz-66Hz (According to local standard)
Active power adjustable range		0~100%
THDi		<3%
Power factor		>0.99 (adjustable +/-0.8)
Performance
Max efficiency	98.50%	98.50%	98.50%	98.70%
European weighted efficiency	98.20%	98.20%	98.20%	98.40%
Self-consumption at night		<1W
MPPT efficiency		>99.9%
Protection
DC reversepolarity protection		Yes
DC switch		Yes
Protection class / overvoltage category	I/III
Safety protection		Anti islanding, RCMU, Ground fault monitoring
ARPC		Anti reverse power controller (optional)
Input/output SPD (II)		Optional
Communication
Power management unit		According to certification and request
Standard communication mode	RS485, Wifi/Ethernet/GPRS (Optional), SD card, Multi-function relay
Operation data storage		25Years
General Data
Ambient temperature range		\'-25C ~+60C
Topology		Transformer-less
Degree of protection		IP65
Allowable relative humidity range		0~100%
Max. operating altitude		2000m
Noise	<30dB	<45dB	<45dB	<45dB
Weight		50Kg
Cooling	Natural	Fan	Fan	Fan
Dimension		777564298mm
Display		LCD display
Warranty		5 years/7 years / 10 years
Standard
EMC		EN 6 1000-6-2, EN 6 1000-6-4
Safety standards	IEC62109-1/2, IEC62116, IEC61727, IEC-61683, IEC60068 (1,2,14,30)
Grid standards	AS/NZS 4777, AS/NZS 61000, VDE V 0124-100, V0126-I-I, VDE-AR-N 4105, CEI 0-21/CEI 0-16, EN50549, G59, RD1699,UTE CI 5-712-I, EN50530
